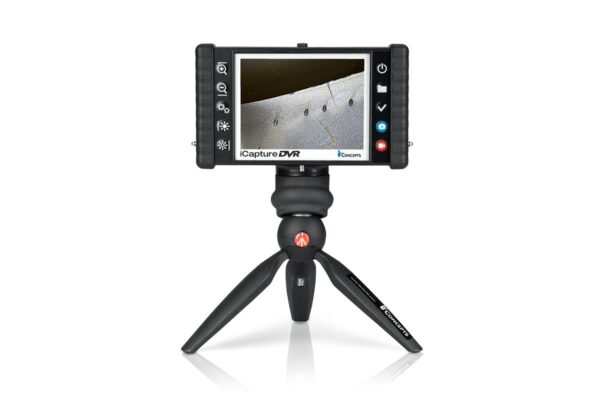

Operating unit
| Display size: | 5.0“ (12.7cm) TFT colour/nonreflecting | |
| Display resolution: | VGA (640 x 480 Pixel | |
| Operating system: | Real-time operating system, with on-screen menu | |
| User interface: | Direct action keys / function keys /arrow key | |
| Video interface: | Composite video-out (BNC) | |
| Languages: | English, German, Polish, French, Spanish, Italian, Turkish | |
| Power supply, primary: | Rechargeable Li-ion battery Operating time more than 2 h | |
| Power supply, secondary: | 12V adapter (optional accessories) |
Documentation
| Saving / recording: | Video recording Direct image capturing / Freeze modus | |
| Video format: | MPEG4 (.avi) (with time and date stamp) | |
| Image format: | BMP (.bmp) (with time and date stamp) Could be converted to JPG at PC | |
| Storage: | SDHC memory card up to 32GB (FAT32) 8GB / SDHC in device when delivered |
Image editing
| Method: | Image marking / analysis |
Camera
| Inegration modes: | automatic frame integration standard / manuell / short / long | |
| White balance: | Factory default or user defined | |
| AGC level (gain control): | Adjustable | |
| Gamma: | Adjustable |
Image control
| Zoom: | 16 step digital zoom | |
| Invert: | Horizontal and vertical image inversion | |
| Brightness: | Adjustable | |
| Contrast: | Adjustable | |
| Colour: | Adjustable | |
| Text annotation: | Built-in text overlay generator |
Illumination
| Type: | High-power LED | |
| Average lamp lifetime: | approx. 15.000 h |

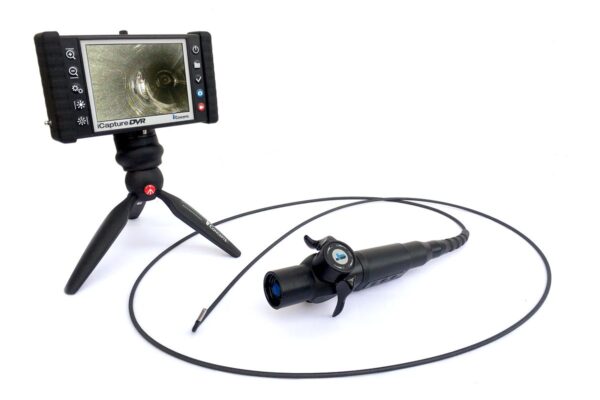

Probe
4.0 | 6.0 | 8.0 | ||||
| Diameter: | 4.0 mm | 6.0 mm | 8.0 mm | |||
| Working length: | 1.0 – 4.0 m | 1.0 – 7.5 m | 1.0 – 7.5 m | |||
| Articulation: | 4-way / 360° | 4-way / 360° | 4-way / 360° | |||
| Angle up to 3m (up / down / left / right): | 160° / 130° / 100° / 100° | 160° / 130° / 100° / 100° | 160° / 130° / 100° / 100° | |||
| Integrated objective lens: | Yes | No | No | |||
| Side view tip adapter: | No | Yes | Yes | |||
| Side view option: | Yes (with 60° FOV lens) | Yes | Yes | |||
| Braid: | Multi-layer tungsten braid on PU jacket | Multi-layer tungsten braid on PU jacket | Multi-layer tungsten braid on PU jacket |
Interchangeable Objective Lenses & SVTA
| Probe | DOV | FOV | DOF | CODE |
| 4.0 mm | 0° | 60° | 8 – 35 mm | |
| 4.0 mm | 0° | 60° | 4 – 10 mm | SD |
| 4.0 mm** | 90° | 60° | 8 – 35 mm | SVTA |
| 4.0 mm** | 90° | 60° | 4 – 10 mm | SVTA |
| 4.0 mm | 0° | 90° | 10 – 60 mm | |
| 4.0 mm | 0° | 90° | 15 mm – ∞ | |
| 4.0 mm | 0° | 120° | 5 mm – ∞ | |
| 6.0 mm | 0° | 60° | 5 mm – ∞ | BLACK |
| 6.0 mm | 0° | 60° | 10 mm – ∞ | GOLD * |
| 6.0 mm** | 90° | 60° | 5 – 15 mm | SVTA N |
| 6.0 mm** | 90° | 60° | 15 – 50 mm | SVTA F |
| 6.0 mm | 0° | 90° | 5 mm – ∞ | RED |
| 6.0 mm | 0° | 120° | 5 mm – ∞ | SILVER |
| 8.0 mm | 0° | 28° | 25 mm – ∞ | BLUE |
| 8.0 mm | 0° | 60° | 5 mm – ∞ | BLACK |
| 8.0 mm | 0° | 60° | 8 mm – ∞ | GOLD * |
| 8.0 mm** | 90° | 60° | 5 mm – ∞ | SVTA |
| 8.0 mm | 0° | 90° | 5 mm – ∞ | SILVER * |
| 8.0 mm | 0° | 90° | 5 mm – ∞ | RED |

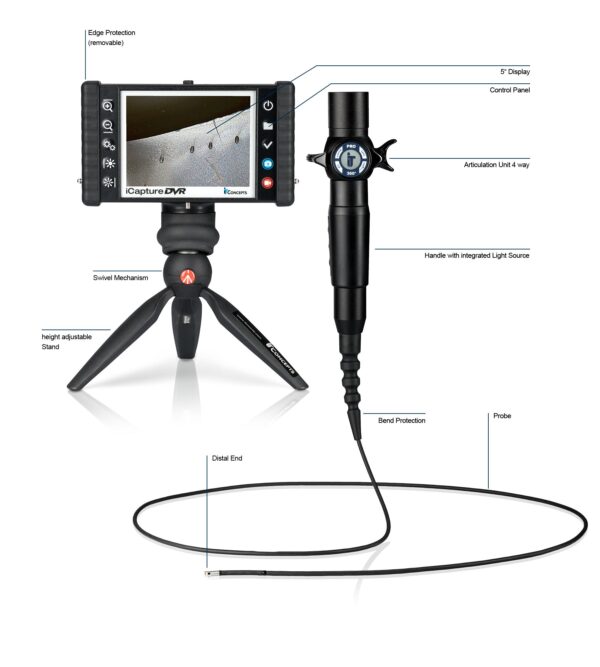

Construction
| Ergonomics: | rotatable display unit | |
| System weight: | 1.12 kg | |
| Dimensions: | 205 mm X 180 mm X 70 mm | |
| Housing: | Rugged PU with integrated rubber shock caps |
Operating environment
iCapture DVR
| System operating temperature: | -13° F to 115° F (-25° C to +46° C) | |
| Storage temperature: | -13° F to 140° F (-25° C to +60° C) | |
| Protection Class: | IP 53 | |
| Relative humidity: | 95% less than – non condensing |
iLED Videoendoskop (Wechselsonde)
| Tip operating temperature: | -13° F to 176° F (-25° C to +80° C) / 284° F (140° C) less than 5 Minutes | |
| System operating temperature: | -13° F to 115° F (-25° C to +46° C) | |
| Storage temperature: | -13° F to 140° F (-25° C to +60° C) | |
| Protection Class: | IP 55 | |
| Relative humidity: | 95% less than – non condensing | |
| Waterproof: | Probe and distal end up to 14.7 psi (1 bar- 10.2m H2O) Hydrostatic head of 5 meters | |
| Resistance: | Probe and distal end to oils, saline (5%) and petroleum fluids |
