XLED PRO DUAL VIEW System

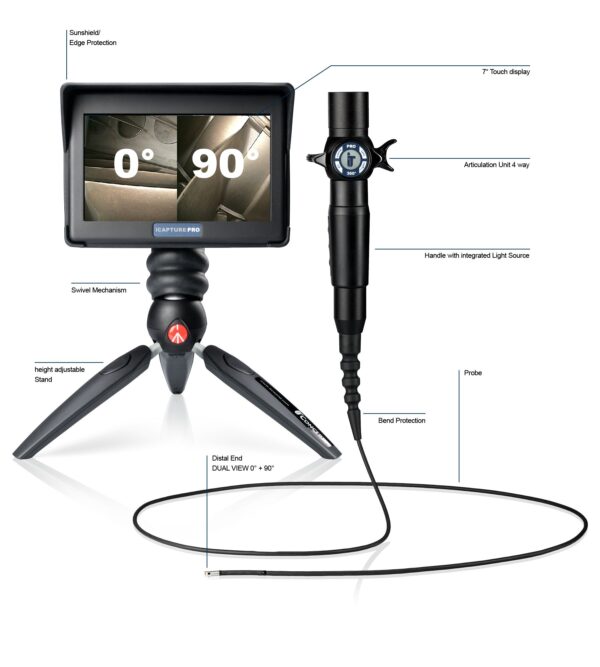

The XLED PRO Video System is a small and highly portable Inspection System. 2 cameras in parallel The system contains 4.0 mm or 6.0 mm XLED PRO Videoscope with 4-way Articulation combining 2 cameras in parallel. You can decide between 0° DOV (direction of view) or one 90° or both together.With diameters of 4.0 mm or 6.0mm and lengths from 1.5 m to 7.5 m the XLED PRO DUAL VIEW System leaves nothing to be desired. The iCAPTURE 7” Touch- Monitor it establishes a complete and easy to handle Video Inspection System. XLED PRO DUAL VIEW System comes with the iCAPTURE PRO 7” Touch- Monitor or could be connected to any HDMI monitor with our HDMI ZOOM and HDMI PRO devices.It comes in Video Pro System Case (up to 4 m length, IATA standard) or iRis Case plus (from 5 m length, non IATA).

Inquiry

CatalogDownload

Specifications

Operating unit

Display size:		7.0″
Display resolution:		1024 x 600 Pixel
Operating system:		EIOS (Endoscopic Imaging Operating System)
User interface:		USB
Power supply, primary:		Rechargeable Li-ion battery
Power supply, secondary:		12 V adapter (optional accessories)

Ducomention

Video format:		MPEG4 (.avi)
Image format:		BMP (.bmp), JPEG (.jpg), PNG (.png)
Storage:		intern 16GB / USB (16GB in delivery)

image editing

Method:

Image marking / analysis

camera

Sensor:

AIT Advanced Image Sensor

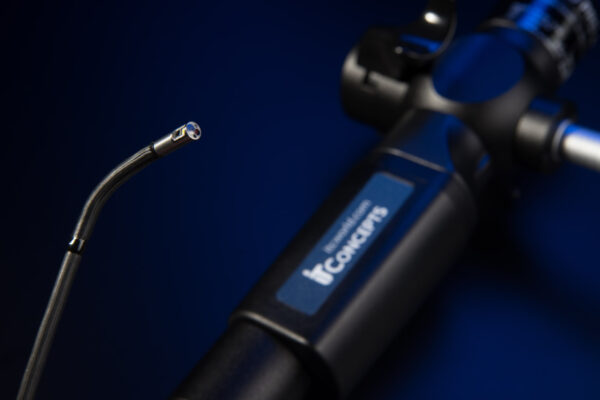

probe

	4.0		6.0
Diameter:		4.0 mm		6.0 mm
Working length:		1.5 – 4.0 m		1.5 – 7.5 m
Direction of view:		0° / 90°		0° / 90°

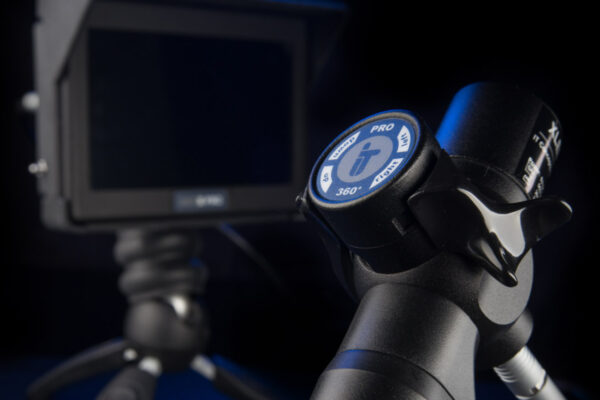

Articulation:		4-way		4-way
Integrated objective lens:		Yes		Yes

construction

Ergonomics:		rotatable + swiveling
System weight:		1.28 kg
Dimensions:		see below
Housing:		Rugged PU with rubber shock protection

Operating Environment

Tip operating temperature:		-13° F to 176° F (-25° C to +80° C) / 284° F (140° C) less than 5 Minutes
System operating temperature:		-13° F to 115° F (-25° C to +46° C)
Storage temperature:		-13° F to 140° F (-25° C to +60° C)
Relative humidity:		95% less than – non condensing
